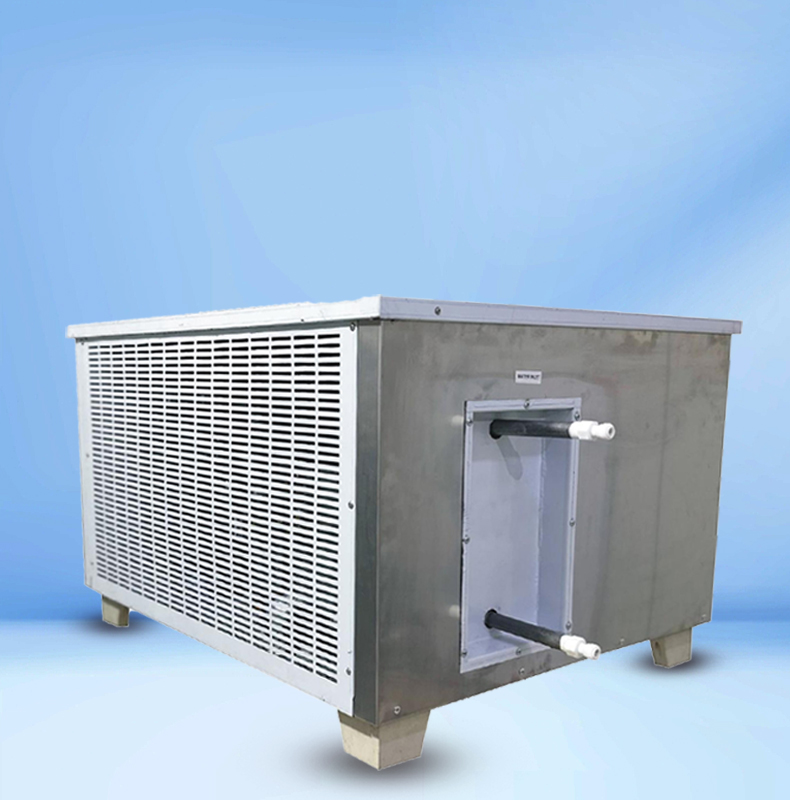

| PARTICULARS | UNIT | MODEL NO. : 2 TON ONLINE CHILLER |
|---|---|---|
| Cooling Capacity | Ltr/Hr. | 300 |
| Storage Capacity | 300 Continuous | |
| Power Supply | 230 V,50 Hz , 1 Phase | |
| Rated Current | Amp. | 11.5 |
| Power Consumption | Watt. | 2200 |
| Brazing Heat Exchanger Plate | 1 Nos |
| Top Mask | THK-0.8mm (SS-304) | |
| Front Panel | THK-0.8mm (SS 304 ) | |
| Rear Panel | THK-0.8mm (SS 304 ) | |
| Side Panel Both Side | THK-0.8mm (SS 304) | |
| Base Plate | THK-1.5mm ( GPSP Sheet) | |
| Temperature Controller | Yes | |
| Condenser Coil | Hydrophilic Alum. Fins (Blue) (grooved Copper) | |
| Legs | Nos | 4 |
| Axial Fan | 16” | |
| Compressor/ Make | Emerson- CR-30 | |
| Refrigerant | Reciprocating - R22 | |
| Dimension (L X D X H) | mm. | 910 X 910 X 765 (L x W x H) |
| Water Feeding Pump | 1 Nos | ½ HP Single Phase |
| Net Weight. | Kg | 55 Approx |
